QF10-177 · Antibacterial Inline Filter · Inline
Serie PurGuard360®
Sistema de Ducha de Mano Antibacteriano
Independently validated
ASTM F838-20 testing conducted by IAPMO R&T certified laboratory.
Validation report: W-12710
0.08 µm
Pore size
Physical Barrier. Stops Waterborne Pathogen Larger than
0.08 microns.
Log 10
99.99999999%
Bacterial Reduction -
tested and certified to
ASTM F838-20
3,700 gal
Service life
14,000 liters per unit, depending on source water quality and usage conditions.
Inline
Point-of-Use
Designed for professional inline installation at showers, sinks and other fixtures.
OVERVIEW

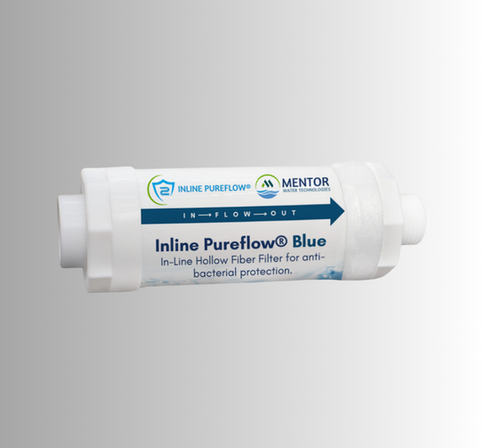

The Inline Pureflow Blue® (Model QF10-177) is an inline ultrafiltration system designed to deliver high-performance bacteria reduction at the point of use, supporting water safety programs in commercial and high-risk environments, including reduction of waterborne bacteria such as Legionella pneumophila, NTM, E. coli, Salmonella, and other bacteria.
Tested and certified to achieve up to 99.99999999% (Log 10) reduction of bacteria based on ASTM F838 protocols under controlled laboratory conditions, while maintaining standard water flow in professional installation applications.
Manufactured in an FDA-registered medical device establishment (Owner/Operator No. 10094411) and produced in an EPA FIFRA-registered antimicrobial facility (EPA Est. No. 105402-NLD-1).
BEST FOR
Hospitals & Medical
Centers
Ice Machines
Senior Living & Nursing Homes
Drinking Fountains
Dental Clinics
Water Treatment
Distributors
TECHNICAL SPECIFICATIONS
SPECIFICATION
DETAIL
Model
QF10-177 Inline Pureflow BLUE
Application
Inline bacterial filtration for professional plumbing installations
Material
Polypropylene (PP)
Pore size
0.08 µm Hollow Fiber Ultrafiltration Membrane
Bacterial reduction
Log 10 (99.99999999%) reduction, tested according to ASTM F838-20
Service life
3,700 gallons (14,000 liters), depending on water quality and usage conditions
Flow Performance
Maintains standard water flow with no loss in water output
Operating pressure
Continuous up to 10 bar (145 psi); short-term peak up to 20 bar (240 psi)
Operating Temperature
Continuous up to 60°C (140°F); peak up to 70°C (158°F)
Connection Type
Universal threaded connection (male × female), compatible with standard plumbing fittings
Dimensions
Width: 50mm (1.97in) · Length: 140mm (5.5in)
Weight
88g / 3.1 oz
Quality assurance
100% Membrane Integrity Tested Per Unit
Manufacturing status
Manufactured in an FDA-registered medical device establishment (Owner/Operator No. 10094411) and an EPA FIFRA-registered facility (Est. No. 105402-NLD-1)
DOCUMENTATION
Certifications & registrations
ASTM F838-20
Legionella pneumophila reduction to Log 10
DIN EN 16421 · DIN 58356
German / EU standards compliance
EPA FIFRA — Est. 105402-NLD-1
Registered manufacturing facility
CE Marked
EU Drinking Water Directive 2020/2184
FDA Registered — #10094411
Medical device establishment
