QF10-177 · Mounted Showerhead · Point-of-Use · Medical Device
Serie PurGuard360®
Sistema de Ducha de Mano Antibacteriano
Independently validated
ASTM F838-20 testing conducted by IAPMO R&T certified laboratory.
Validation report: W-12710
0.08 µm
Pore size
Physical Barrier. Stops Waterborne Pathogen Larger than
0.08 microns.
Log 10
99.99999999%
Bacterial Reduction -
tested and certified to
ASTM F838-20
135 Days
Service life
Up to 135 days per unit, depending on source water quality and usage conditions.
4
Operating Modes
Rain · Normal · Steam · Waterfall Four operating positions for user flexibility.
OVERVIEW

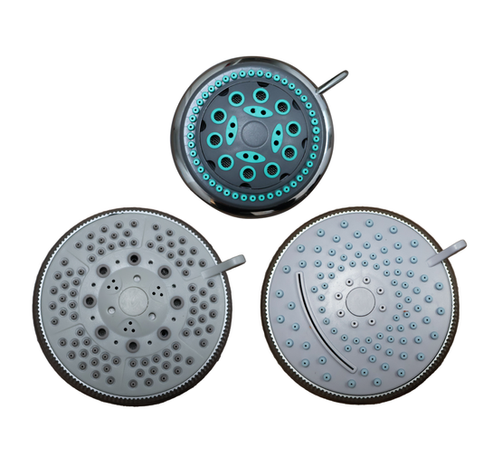

The SkyStream® (Model QF10-177) is a point-of-use shower filtration system engineered to deliver high-performance bacteria reduction, supporting water safety programs in commercial and high-risk environments, including reduction of waterborne bacteria such as Legionella pneumophila, NTM, E. coli, Salmonella, and other bacteria.
Tested and certified to achieve up to 99.99999999% (Log 10) reduction of bacteria based on ASTM F838 protocols under controlled laboratory conditions, while preserving standard shower flow in professional installation applications.
Manufactured in an FDA-registered medical device establishment (Owner/Operator No. 10094411) and produced in an EPA FIFRA-registered antimicrobial facility (EPA Est. No. 105402-NLD-1).
BEST FOR
Hospitals & Medical
Centers
Hospitality & Hotels
Senior Living & Nursing Homes
Gyms &
Sports Facilities
Rehabilitation Centers
Water Treatment
Distributors
TECHNICAL SPECIFICATIONS
SPECIFICATION
DETAIL
Model
QF10-177 SkyStream
Application
Point-of-use bacterial filtration for mounted and ceiling shower installations
Material
Polypropylene (PP)
Pore size
0.08 µm Hollow Fiber Ultrafiltration Membrane
Bacterial reduction
Log 10 (99.99999999%) reduction, tested according to ASTM F838-20
Service life
Up to 135 days (4.5 months), depending on water quality and usage conditions
Flow Performance
Maintains standard water flow with no loss in water output
Operating pressure
Continuous up to 10 bar (145 psi); short-term peak up to 20 bar (240 psi)
Operating Temperature
Continuous up to 60°C (140°F); peak up to 70°C (158°F)
Connection Type
Universal shower connection
Installation
Tool-free installation
Operating positions
Rain / Normal / Steam / Waterfall
Dimensions
Width: 110mm (4.33in) · Length: 220mm (8.66in)
Weight
245g / 8.64 oz
Quality assurance
100% Membrane Integrity Tested Per Unit
Manufacturing status
Manufactured in an FDA-registered medical device establishment (Owner/Operator No. 10094411) and an EPA FIFRA-registered facility (Est. No. 105402-NLD-1)
DOCUMENTATION
Certifications & registrations
NSF P376
Bacteria and fungi reduction
ASTM F838-20
Legionella pneumophila reduction to Log 10
CE Marked
EU Drinking Water Directive 2020/2184
FDA Registered — #10094411
Medical device establishment
ASSE LEC 2011–2022
US water engineering bacteria reduction standard
EPA WaterSense
IAPMO certified
DIN EN 16421 · DIN 58356
German / EU standards compliance
EPA FIFRA — Est. 105402-NLD-1
Registered manufacturing facility
