QF10-202 · Handheld Shower · POU · Medical Device
PurGuard360®
Log 10 Certified Antibacterial
Handheld Shower System
15 cm
The only EPA WaterSense certified handheld shower that also achieves a Log 10 (99.99999999%) Legionella reduction at the point of use.
Independently validated
ASTM F838-20 testing conducted by IAPMO R&T certified laboratory.
Validation report: W-12710
0.08 µm
Pore size
Physical Barrier. Stops Waterborne Pathogen Larger than
0.08 microns.
Log 10
99.99999999%
Bacterial Reduction -
tested and certified to
ASTM F838-20
150 Days
Service life
Longest Service Life On The Market. Delivering Up To 40% More Coverage Per Unit Than Competing Solutions.
Watersense
Certified
EPA-WaterSense Special
Edition certified
Meets All US States
Regulations
OVERVIEW

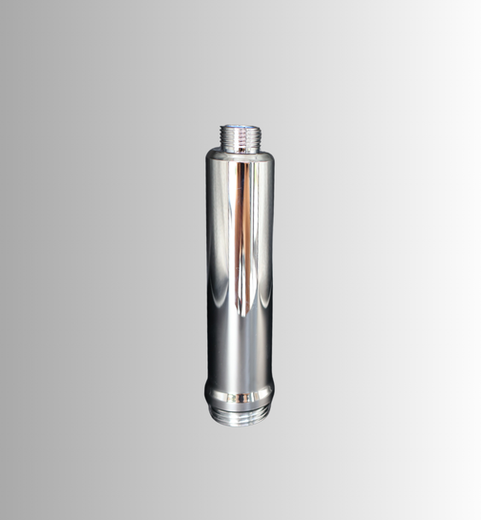

The PurGuard360® 15cm (Model QF10-202) is a handheld shower system designed to deliver high-performance bacteria reduction at the point of use, supporting water safety programs in commercial and high-risk environments, including reduction of waterborne bacteria such as Legionella pneumophila, NTM, E. coli, Salmonella, and other bacteria.
Tested and certified to achieve up to 99.99999999% (Log 10) reduction of bacteria based on ASTM F838 protocols, the system provides consistent and reliable filtration performance under real-world conditions.
Manufactured in an FDA-registered medical device establishment (Owner/Operator No. 10094411) and produced in an EPA FIFRA-certified antimicrobial facility (EPA Est. No. 105402-NLD-1), ensuring compliance with applicable U.S. regulatory and manufacturing standards.
The integrated 0.08 µm hollow fiber membrane is permanently mounted within the shower handle, eliminating the risk of unfiltered water bypass associated with conventional cartridge-based designs.
Available in White and Chrome. Universal connection. No tools required. Installation in under 5 minutes.
BEST FOR
Hospitals & Medical
Centers
Rehabilitation
Centers
Senior Living & Nursing Homes
Gyms & Sports
Facilities
Hotels &
Resorts
Water Treatment
Distributors
TECHNICAL SPECIFICATIONS
SPECIFICATION
DETAIL
Model
QF10-202 PurGuard360 15cm (White/Chrome)
Operating Positions: Rain / Normal / Steam
Application
Point-of-use bacterial filtration for showers in commercial and high-risk environments
Material
Medical-grade ABS housing with integrated antimicrobial protection
Pore size
0.08 µm Hollow Fiber Ultrafiltration Membrane
Filtration area
3,400 cm² (527 in²)
Bacterial reduction
Log 10 (99.99999999%) reduction, tested according to ASTM F838-20
Service life
Up to 150 days, depending on water quality and usage conditions
Flow Performance
Engineered to maintain consistent flow without measurable pressure drop
Operating pressure
Continuous up to 5 bar (72.5 psi), short-term peak up to 20 bar (290 psi)
Operating Temperature
Continuous up to 60°C (140°F), peak up to 70°C (158°F)
Connection Type
Universal shower connection
Installation
Tool-free installation
EPA WaterSense
Special Edition certified
Dimensions
Width: 150.5mm (5.93in) · Length: 330.5mm (13in)
Weight
353g (12.45 oz)
Quality assurance
100% Membrane Integrity Tested Per Unit
Manufacturing status
Manufactured in an FDA-registered medical device establishment (Owner/Operator No. 10094411) and an EPA FIFRA-registered facility (Est. No. 105402-NLD-1)
DOCUMENTATION
Certifications & registrations
NSF P376
Bacteria and fungi reduction
ASTM F838-20
Legionella pneumophila reduction to Log 10
CE Marked
EU Drinking Water Directive 2020/2184
FDA Registered — #10094411
Medical device establishment
ASSE LEC 2011–2022
US water engineering bacteria reduction standard
EPA WaterSense
IAPMO certified
DIN EN 16421 · DIN 58356
German / EU standards compliance
EPA FIFRA — Est. 105402-NLD-1
Registered manufacturing facility
